MAX7328, MAX7329

FULL DATA SHEET (PDF, 616kB) Download

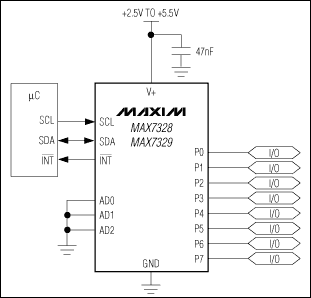

All input ports are continuously monitored for state changes (transition detection). Transitions are alerted through the open-drain, 5.5V-tolerant INT-bar output.

The MAX7328 and MAX7329 versions differ only by their slave ID address ranges. The MAX7328 has a slave ID range of 0100xxx (0x20 to 0x27). The MAX7329 has a slave ID range of 0111xxx (0x38 to 0x3F).

For a similar part with overvoltage-protected I/Os and a bus RST-bar input that clears the I²C serial interface, refer to the MAX7321 data sheet. The MAX7328/MAX7329 are members of a family of pin-compatible port expanders with a choice of input ports, open-drain I/O ports, and push-pull output ports (see the Selector Guide in the full data sheet).

• 100kHz, 5.5V-Tolerant, I²C-Compatible Serial Interface
• 2.5V to 5.5V Operating Supply Voltage Range
• Low-Standby-Current Consumption of 10µA (max)
• I²C Bus-to-Parallel-Port Expander
• Open-Drain Interrupt Output INT-bar
• 8-Bit Remote I/O Port for the I²C Bus
• Latched Outputs with High-Current-Drive Capability for Directly Driving LEDs
• Address by Three Hardware Address Pins for Use of Up to Eight Devices
       (Up to 16 Using Both MAX7328/MAX7329)
• -40¡ãC to +125¡ãC Automotive Temperature Range
• Second Sources to PCF8574 and PCF8574A

• Automotive

• Industrial

• Notebooks

• RAID

• Servers
