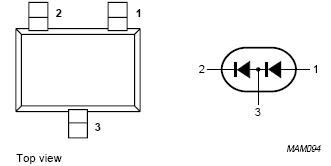

表面贴装快速开关二极管：BAV99 BAV99W
最大额定值：| Characteristic 参数 | 符号 | 数值 | 单位 | |
| Non-Repetitive Peak Reverse Voltage 非重复峰值反向电压 | VRM | 100 | V | |
| Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage 峰值重复反向电压峰值反向工作电压直流阻断电压 | VRRM VRWM VR | 75 | V | |
| Forward Continuous Current 正向连续电流 | IF | 300 | mA | |
| Average Rectified Output Current平均整流输出电流 | IO | 150 | mA | |
| Peak Forward Surge Current @t<1.0μs 峰值正向浪涌电流 | IFSM | 2.0 | A | |
| Power Dissipation 功耗 | Pd | BAV99W | 200 | mW |
| BAV99 | 350 | |||
| Typical Thermal Resistance, Junction to Ambient Air 典型的热电阻，结对环境空气 | RθJA | BAV99W | 625 | K/W |
| BAV99 | 357 | |||
| Operating and Storage Temperature Range 操作和储存温度范围 | Tj, TSTG | -65 to +150 | ℃ | |
电气特性：
| Characteristic 参数 | 符号 | 最小 | 最大 | 单位 | Test Condition 测试条件 |
| Forward Voltage 正向电压 | VF | — | 0.855 | V | @IF = 10mA |
| - | 1.0 | V | @IF = 50mA | ||
| Reverse Leakage Current 反向漏电流 | IR | — | 2.5 | μA | @VR = 75V |
| Junction Capacitance 结电容 | Cj | — | 2 | pF | VR = 0V, f = 1.0MHz |
| Reverse Recovery Time 反向恢复时间 | trr | — | 6 | nS | IF=IR=10mA,IRR=0.1xIR,RL=100. |
|
|
