| PartNumber | VCES (V) |
IC25 TC=25°C IGBT (A) |
IC80 TC=80°C IGBT (A) |
VCE(sat) typ TJ=25°C IGBT(V) |
Eofftyp TJ=125°C IGBT (mJ) |
RthJC max IGBT (°C/W) |
IF80 TC=80°C Diode (A) |
RthJC max Diode (°C/W) |

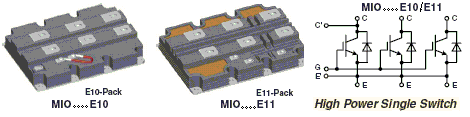

Ckt Diag | Package Style |
| MIO1800-17E10 | 1700 | 2500 | 1800 | 2.3 | 670 | 0.009 | 1800 | 0.017 | MIO....E10 | E10 |
| MIO2400-17E10 | 1700 | 3300 | 2400 | 2.3 | 980 | 0.007 | 2400 | 0.012 | MIO....E10 | E10 |
| MIO1200-25E10 | 2500 | 1650 | 1200 | 2.5 | 1250 | 0.009 | 1200 | 0.017 | MIO....E10 | E10 |
| MIO1500-25E10 | 2500 | 2100 | 1500 | 2.7 | 1450 | 0.008 | 1500 | 0.016 | MIO....E10 | E10 |
| MIO1200-33E10 | 3300 | 1650 | 1200 | 3.1 | 1950 | 0.0085 | 1200 | 0.017 | MIO....E10 | E10 |
| MIO1200-33E11 | 3300 | 1650 | 1200 | 3.1 | 2000 | 0.0085 | 1200 | 0.017 | MIO....E11 | E11 |
| MIO600-65E11 | 6500 | 840 | 600 | 4.2 | 3500 | 0.011 | 600 | 0.021 | MIO....E11 | E11 |
