SN74ALS05AN Hex Inverters With Open-Collector Outputs

Pricing / Packaging

Device	Status	Temp (^oC)	Price \| Quantity	Package \| Pins	Top Side Marking	Package QTY \| Package Carrier
SN74ALS05AD	ACTIVE	0 to 70	0.44 \| 1ku	SOIC (D) \| 14	View	50 \| TUBE
SN74ALS05ADBLE	OBSOLETE	0 to 70		SSOP (DB) \| 14	View
SN74ALS05ADE4	ACTIVE	0 to 70	0.44 \| 1ku	SOIC (D) \| 14	View	50 \| TUBE
SN74ALS05ADG4	ACTIVE	0 to 70	0.44 \| 1ku	SOIC (D) \| 14	View	50 \| TUBE
SN74ALS05ADR	ACTIVE	0 to 70	0.40 \| 1ku	SOIC (D) \| 14	View	2500 \| LARGE T&R
SN74ALS05ADRE4	ACTIVE	0 to 70	0.40 \| 1ku	SOIC (D) \| 14	View	2500 \| LARGE T&R
SN74ALS05ADRG4	ACTIVE	0 to 70	0.40 \| 1ku	SOIC (D) \| 14	View	2500 \| LARGE T&R
SN74ALS05AN	ACTIVE	0 to 70	0.44 \| 1ku	PDIP (N) \| 14	View	25 \| TUBE
SN74ALS05AN3	OBSOLETE	0 to 70		PDIP (N) \| 14	View
SN74ALS05ANE4	ACTIVE	0 to 70	0.44 \| 1ku	PDIP (N) \| 14	View	25 \| TUBE
SN74ALS05ANSR	ACTIVE	0 to 70	0.44 \| 1ku	SO (NS) \| 14	View	2000 \| LARGE T&R
SN74ALS05ANSRE4	ACTIVE	0 to 70	0.44 \| 1ku	SO (NS) \| 14	View	2000 \| LARGE T&R
SN74ALS05ANSRG4	ACTIVE	0 to 70	0.44 \| 1ku	SO (NS) \| 14	View	2000 \| LARGE T&R

Description

These devices contain six independent hex inverters with open-collector outputs. They perform the Boolean function Y = A\. The open-collector outputs require pullup resistors to perform correctly. These outputs can be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate higher V_OH levels.

The SN54ALS05A is characterized for operation over the full military temperature range of -55��C to 125��C. The SN74ALS05A is characterized for operation from 0��C to 70��C.

Features

Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs

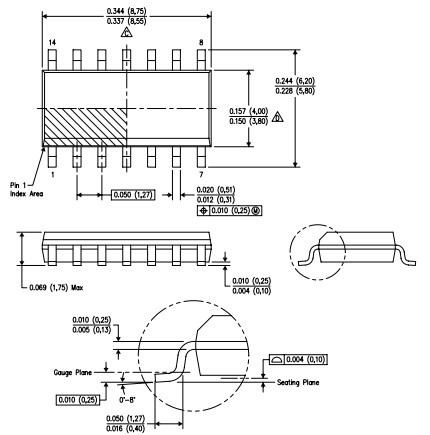

Packeging:
