Pricing, Packaging
| Model | Package | Pins | Temp. Range |
Price* (100-499) |
Price* (1000 pcs.) |
Production** Availability |
ROHS Compliant | |
|---|---|---|---|---|---|---|---|---|
| OP37EP |  |
8 ld PDIP | 8 | Ind | $3.74 | $3.35 | 02/26/2010 | N Material Declaration |
| OP37EPZ | |
8 ld PDIP | 8 | Ind | $3.24 | $2.90 | 04/09/2010 | Y Material Declaration |
| OP37EZ | |
CERDIP GLASS SEAL | 8 | Ind | $11.70 | $11.12 | 04/02/2010 | N Material Declaration |
| OP37GP | |
8 ld PDIP | 8 | Ind | - | - | - | N Material Declaration |
| OP37GPZ | |
8 ld PDIP | 8 | Ind | $1.25 | $1.22 | 02/26/2010 | Y Material Declaration |
| OP37GS | |
8 ld SOIC | 8 | Ind | $1.38 | $1.31 | 04/09/2010 | N Material Declaration |
| OP37GS-REEL | |
8 ld SOIC | 8 | Ind | - | - | - | N Material Declaration |
| OP37GS-REEL7 | |
8 ld SOIC | 8 | Ind | - | $1.31 | 04/09/2010 | N Material Declaration |
| OP37GSZ | |
8 ld SOIC | 8 | Ind | $1.19 | $1.14 | 04/30/2010 | Y Material Declaration |
| OP37GSZ-REEL | |
8 ld SOIC | 8 | Ind | - | $1.14 | 04/30/2010 | Y Material Declaration |
| OP37GSZ-REEL7 | |
8 ld SOIC | 8 | Ind | - | $1.14 | 04/30/2010 | Y Material Declaration |
Description
The OP-37 provides the same high performance as the OP-27, but the design is optimized for circuits with gains greater than five. This design change increases slew rate to 17V/µsec and gain-bandwidth product to 63MHz.
The OP-37 provides the low offset and drift of the OP-07 plus higher speed and lower noise. Offsets down to 25µV and drift of 0.6µV/°C maximum make the OP-37 ideal for precision instrumentation applications. Exceptionally low noise (en=3.5nV/
The low input bias current of ±10nA and offset current of 7nA are achieved by using a bias-current-cancellation circuit. Over the military temperature range this typically holds IB and IOS to ±20nA and 15nA respectively.
The output stage has good load driving capability. A guaranteed swing of ±10V into 600 Ohm and low output distortion make the OP-37 an excellent choice for professional audio applications.
Features
3 nV/vHz @ 1 kHz
63 MHz Gain Bandwidth
(Common-Voltage @ 11 V)
SE5534 In Gains > 5

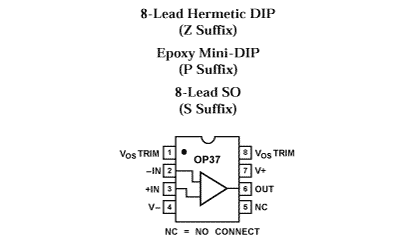

Pin Configuration Diagram for OP37
