Pricing, Packaging
| Model | Status | Package | Pins | Temp. Range |
Price* (100-499) |
Price* (1000 pcs.) |
Production** Availability |
ROHS Compliant |
|---|---|---|---|---|---|---|---|---|
| AD51/068Z-0REEL | Contact ADI | 16 ld SOIC - Wide | 16 | Ind | - | - | - | Y Material Declaration |
| AD51/069-0REEL | Contact ADI | 16 ld SOIC - Wide | 16 | Ind | - | - | 06/11/2010 | N Material Declaration |
| ADM2483BRW | Prodn | 16 ld SOIC - Wide | 16 | Ind | $3.85 | $3.51 | 06/18/2010 | N Material Declaration |
| ADM2483BRW-REEL | Prodn | 16 ld SOIC - Wide | 16 | Ind | - | $3.51 | 05/28/2010 | N Material Declaration |
| ADM2483BRWZ | Prodn | 16 ld SOIC - Wide | 16 | Ind | $3.34 | $3.04 | 06/04/2010 | Y Material Declaration |
| ADM2483BRWZ-REEL | Prodn | 16 ld SOIC - Wide | 16 | Ind | - | $3.04 | 06/04/2010 | Y Material Declaration |
Description
The ADM2483 differential bus transceiver is an integrated, galvanically isolated component designed for bi-directional data communication on multi-point bus transmission lines. It is designed for balanced transmission lines and complies with ANSI TIA/EIA RS-485-A and ISO 8482:1987(E). The ADM2483 employs Analog Devices’ iCoupler technology to combine a 3-channel isolator, a 3-state differential line driver and a differential input receiver into a single package. The logic side of the device can be powered with either a 5 V or a 3 V supply while the bus-side is powered with a 5 V supply.
Features

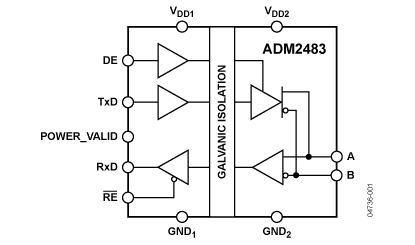

Functional Block Diagram for ADM2483
