Pricing, Packaging
Model | Status | Package | Pins | Temp. Range |
Price* (100-499) |
Price* (1000 pcs.) |
Production** Availability |
ROHS Compliant |
---|---|---|---|---|---|---|---|---|
ADUC847BCP62-3 | Prodn | 56 ld LFCSP (8x8mm) | 56 | Ind | $11.63 | $10.25 | 02/26/2010 | N Material Declaration |
ADUC847BCP62-5 | Prodn | 56 ld LFCSP (8x8mm) | 56 | Ind | $11.63 | $10.25 | 02/26/2010 | N Material Declaration |
ADUC847BCP8-3 | Prodn | 56 ld LFCSP (8x8mm) | 56 | Ind | $7.07 | $6.22 | - | N Material Declaration |
ADUC847BCPZ62-3 | Prodn | 56 ld LFCSP (8x8mm) | 56 | Ind | $11.08 | $9.76 | 02/26/2010 | Y Material Declaration |
ADUC847BCPZ62-5 | Prodn | 56 ld LFCSP (8x8mm) | 56 | Ind | $11.08 | $9.76 | 02/26/2010 | Y Material Declaration |
ADUC847BCPZ8-3 | Prodn | 56 ld LFCSP (8x8mm) | 56 | Ind | $6.73 | $5.92 | 04/30/2010 | Y Material Declaration |
ADUC847BCPZ8-5 | Prodn | 56 ld LFCSP (8x8mm) | 56 | Ind | $6.73 | $5.92 | 02/26/2010 | Y Material Declaration |
ADUC847BSZ32-3 | Prodn | 52 ld MQFP (13.90mm width) | 52 | Ind | $9.06 | $7.97 | 02/26/2010 | Y Material Declaration |
ADUC847BSZ32-5 | Prodn | 52 ld MQFP (13.90mm width) | 52 | Ind | $9.06 | $7.97 | 04/16/2010 | Y Material Declaration |
ADUC847BSZ62-3 | Prodn | 52 ld MQFP (13.90mm width) | 52 | Ind | $11.08 | $9.76 | 02/26/2010 | Y Material Declaration |
ADUC847BSZ62-5 | Prodn | 52 ld MQFP (13.90mm width) | 52 | Ind | $11.08 | $9.76 | 02/26/2010 | Y Material Declaration |
ADUC847BSZ8-3 | Prodn | 52 ld MQFP (13.90mm width) | 52 | Ind | $6.73 | $5.92 | 02/26/2010 | Y Material Declaration |
ADUC847BSZ8-5 | Prodn | 52 ld MQFP (13.90mm width) | 52 | Ind | $6.73 | $5.92 | 02/26/2010 | Y Material Declaration |
EVAL-ADUC847QSZ | Prodn | EVALUATION BOARDS | - | TBD | $75.90 | $75.90 | 02/26/2010 | Y |
PDF
Description

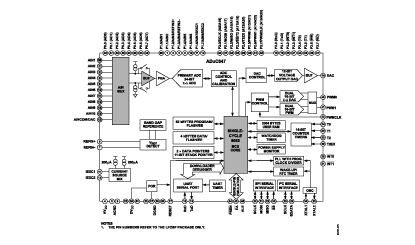

The ADuC847/ADuC848 MicroConverter products are fully integrated 24-Bit/16-Bit, Multi-Channel Sigma-Delta ADC and Flash Microcontroller on a single chip. These devices are optimized for applications in industrial control, smart sensors, loadcells and instrumentation that require precision acquisition of multiple (up to 10) channels.
The ADuC847/ADuC848 are available is 52-pin PQFP or 56-pin CSP packages and operates on a 3 V or 5 V power supply and are specified up to 125ºC (CSP up to 85ºC only). Like all of ADI’s MicroConverter products, the device is supported by the QuickStart and QuickStart-Plus range of development tools.
Features
