Pricing, Packaging
| Model | Status | Package | Pins | Temp. Range |
Price* (100-499) |
Price* (1000 pcs.) |
Production** Availability |
ROHS Compliant |
|---|---|---|---|---|---|---|---|---|
| ADUM1201ARZ | Prodn | 8 ld SOIC | 8 | Ind | $1.39 | $1.22 | 05/14/2010 | Y Material Declaration |
| ADUM1201ARZ-RL7 | Prodn | 8 ld SOIC | 8 | Ind | - | $1.22 | 05/14/2010 | Y Material Declaration |
| ADUM1201BRZ | Prodn | 8 ld SOIC | 8 | Ind | $2.02 | $1.78 | 05/14/2010 | Y Material Declaration |
| ADUM1201BRZ-RL7 | Prodn | 8 ld SOIC | 8 | Ind | - | $1.78 | 05/14/2010 | Y Material Declaration |
| ADUM1201CR-RL7 | Last Time Buy | 8 ld SOIC | 8 | Ind | - | $2.85 | - | N Material Declaration |
| ADUM1201CRZ | Prodn | 8 ld SOIC | 8 | Ind | $2.80 | $2.47 | 04/16/2010 | Y Material Declaration |
| ADUM1201CRZ-RL7 | Prodn | 8 ld SOIC | 8 | Ind | - | $2.47 | 04/16/2010 | Y Material Declaration |
| ADUM1201WSRZ | Prodn | 8 | Auto | $2.43 | $2.15 | 02/26/2010 | Y Material Declaration | |
| ADUM1201WSRZ-RL7 | Prodn | 8 | Auto | - | $2.15 | 05/21/2010 | Y Material Declaration | |
| ADUM1201WTRZ | Prodn | 8 | Auto | $3.55 | $3.14 | 02/26/2010 | Y Material Declaration | |
| ADUM1201WTRZ-RL7 | Prodn | 8 | Auto | - | $3.14 | 05/07/2010 | Y Material Declaration | |
| ADUM1201WURZ | Prodn | 8 | Auto | $4.91 | $4.35 | 02/26/2010 | Y Material Declaration | |
| ADUM1201WURZ-RL7 | Prodn | 8 | Auto | $4.86 | $4.35 | 03/19/2010 | Y Material Declaration |
PDF
ADUM1201ARZ
Description
The ADuM120x1 are dual-channel, digital isolators based on the Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic transformer technologies, these isolation components provide outstanding performance characteristics superior to alternatives, such as optocouplers.
By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance char-acteristics. The need for external drivers and other discrete components is eliminated with these iCoupler products. Further-more, iCoupler devices consume one-tenth to one-sixth the power of optocouplers at comparable signal data rates.
The ADuM120x isolators provide two independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). Both parts operate with the supply voltage on either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. In addition, the ADuM120x provide low pulse width distortion (<3 ns for CR grade) and tight channel-to-channel matching (<3 ns for CR grade). Unlike other optocoupler alternatives, the ADuM120x isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and during power-up/power-down conditions.
ADuM1200W and ADuM1201W are automotive grade versions qualified for 125°C operation per AEC-Q100. See the Automotive Products section for more details.
Applications
1 Protected by U.S. Patents 5,952,849; 6,873,065; 6,903,578; and 7,075,329. Other patents are pending.
Features
>25 kV/μs

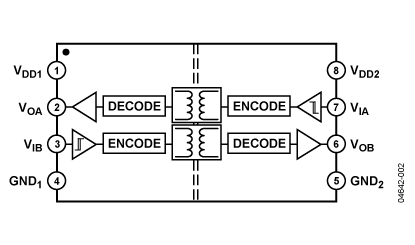

Functional Block Diagram for ADuM1201
