Pricing, Packaging
| Model | Status | Package | Pins | Temp. Range |
Price* (100-499) |
Price* (1000 pcs.) |
Production** Availability |
ROHS Compliant |
|---|---|---|---|---|---|---|---|---|
| 5962-89481022X | Prodn | LCC:CER LEADLESS CHIP CARR | 20 | Mil | $102.92 | $78.99 | 04/09/2010 | N Material Declaration |
| 5962-8948102VX | Prodn | CERDIP GLASS SEAL | 18 | Mil | $51.49 | $45.15 | 02/26/2010 | N Material Declaration |
| AD7541AACHIPS | Prodn | CHIPS OR DIE | - | Ind | $11.78 | $11.78 | 02/26/2010 | Y Material Declaration |
| AD7541AAQ | Prodn | CERDIP GLASS SEAL | 18 | Ind | $11.42 | $10.27 | 02/26/2010 | N Material Declaration |
| AD7541ABQ | Prodn | CERDIP GLASS SEAL | 18 | Ind | $12.56 | $11.30 | - | N Material Declaration |
| AD7541AJN | Prodn | 18 ld PDIP | 18 | Comm. | $10.77 | $9.69 | 02/26/2010 | N Material Declaration |
| AD7541AJNZ | Prodn | 18 ld PDIP | 18 | Comm. | $9.33 | $8.39 | 02/26/2010 | Y Material Declaration |
| AD7541AJP | Prodn | 20 ld PLCC | 20 | Comm. | $12.04 | $10.35 | - | N Material Declaration |
| AD7541AJP-REEL | Prodn | 20 ld PLCC | 20 | Comm. | - | $10.35 | - | N Material Declaration |
| AD7541AJPZ | Prodn | 20 ld PLCC | 20 | Comm. | $10.42 | $8.96 | 02/26/2010 | Y Material Declaration |
| AD7541AJPZ-REEL | Prodn | 20 ld PLCC | 20 | Comm. | - | $8.96 | 02/26/2010 | Y Material Declaration |
| AD7541AKN | Prodn | 18 ld PDIP | 18 | Comm. | $11.99 | $10.77 | 02/26/2010 | N Material Declaration |
| AD7541AKNZ | Prodn | 18 ld PDIP | 18 | Comm. | $10.37 | $9.33 | 04/23/2010 | Y Material Declaration |
| AD7541AKP | Prodn | 20 ld PLCC | 20 | Comm. | $13.37 | $11.50 | 02/26/2010 | N Material Declaration |
| AD7541AKP-REEL | Prodn | 20 ld PLCC | 20 | Comm. | - | $11.50 | - | N Material Declaration |
| AD7541AKPZ | Prodn | 20 ld PLCC | 20 | Comm. | $11.58 | $9.96 | 02/26/2010 | Y Material Declaration |
| AD7541AKPZ-REEL | Prodn | 20 ld PLCC | 20 | Comm. | - | $9.96 | 02/26/2010 | Y Material Declaration |
| AD7541AKR | Prodn | 18 ld SOIC - Wide | 18 | Comm. | $8.38 | $7.37 | 02/26/2010 | N Material Declaration |
| AD7541AKR-REEL | Contact ADI | 18 ld SOIC - Wide | 18 | Comm. | - | - | - | N Material Declaration |
| AD7541AKR-REEL7 | Prodn | 18 ld SOIC - Wide | 18 | Comm. | - | $7.37 | - | N Material Declaration |
| AD7541AKRZ | Prodn | 18 ld SOIC - Wide | 18 | Comm. | $7.26 | $6.39 | 04/16/2010 | Y Material Declaration |
| AD7541AKRZ-REEL | Prodn | 18 ld SOIC - Wide | 18 | Comm. | - | $6.39 | - | Y Material Declaration |
| AD7541AKRZ-REEL7 | Prodn | 18 ld SOIC - Wide | 18 | Comm. | - | $6.39 | 04/09/2010 | Y Material Declaration |
| AD7541ASQ | Prodn | CERDIP GLASS SEAL | 18 | Mil | $33.32 | $29.99 | 02/26/2010 | N Material Declaration |
| AD7541ATE | Prodn | LCC:CER LEADLESS CHIP CARR | 20 | Mil | $77.74 | $61.21 | - | N Material Declaration |
| AD7541ATQ | Prodn | CERDIP GLASS SEAL | 18 | Mil | $38.87 | $34.97 | - | N Material Declaration |
PDF
AD7541AKNZ
Description
The Analog Devices AD7541A is a low cost, high performance 12-bit monolithic multiplying digital-to-analog converter. It is fabricated using advanced, low noise, thin film on CMOS technology and is available in a standard 18-lead DIP and in 20-terminal surface mount packages.
The AD7541A is functionally and pin compatible with the industry standard AD7541 device and offers improved specifications and performance. The improved design ensures that the device is latch-up free so no output protection Schottky diodes are required.
This new device uses laser wafer trimming to provide full 12-bit endpoint linearity with several new high performance grades.
Features

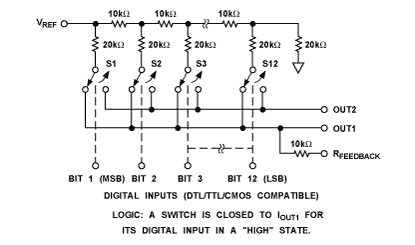

Functional Block Diagram for AD7541A
