The MAX354 single 8-channel mux and the MAX355 dual 4-channel mux protect analog signals while operating from a single 4.5V to 36V supply or ±4.5V to ±18V dual supplies. These muxes have 350Ω on-resistance and can be used for demultiplexing as well as multiplexing. Input leakage current is less than 0.5nA at +25°C and less than 5nA at +85°C. All digital inputs have 0.8V and 2.4V logic thresholds, ensuring both TTL and CMOS logic compatibility without pull-up resistors. Break-before-make operation is guaranteed and power consumption is less than 1.5mW. | ||||||
Download
E-Mail
| Key Features | Applications/Uses | |
|
|
| Key Specifications: Switches and Multiplexers (Mid Voltage) | |||||||||||||||||||||||||||||
| Part Number | Functions | Config. | Channels | VSUPPLY (Single) (V) |
VSUPPLY (Single) (V) |
VSUPPLY (Dual) (±V) |
VSUPPLY (Dual) (±V) |
RON (Ω) |
IL(OFF) (nA) |
tON (ns) |
tOFF (ns) |
QINJECTION (pC) |
CON (pF) |
COFF (pF) |
Price | ||||||||||||||
| min | max | min | max | max | max | min | max | max | max | See Notes | |||||||||||||||||||
| MAX354 | Mux | 8:1 | 1 | 4.5 | 36 | 4.5 | 18 | 350 | 0.5 | 250 | 200 | 80 | 28 | 1.6 | $2.45 @1k | ||||||||||||||
| MAX355 | 4:1 | 2 | 14 | $2.45 @1k | |||||||||||||||||||||||||
| See All Switches and Multiplexers (Mid Voltage) (297) | |||||||||||||||||||||||||||||
| Diagram |

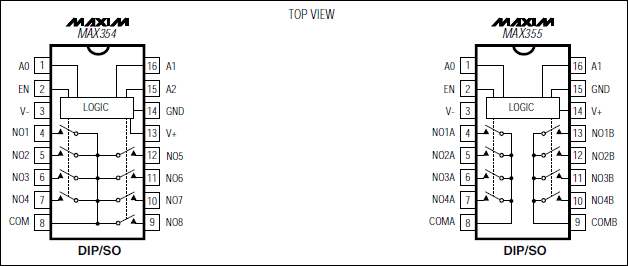

 Pin Configuration |
