MAX3510 Upstream CATV Amplifier

Description

FULL DATA SHEET (PDF, 156kB) Download   E-Mail The MAX3510 is a programmable power amplifier for use in CATV upstream applications. The device outputs up to 64dBmV (continuous wave) through a 2:1 (voltage ratio) transformer. It features variable gain controlled by a 3-wire digital serial bus. Gain control is available in 1dB steps. The device operates over a frequency range of 5MHz to 65MHz. The MAX3510 offers a transmit-disable mode, which places the device in a high-isolation state for use between bursts in TDMA systems. In this mode the output stage is shut off, minimizing output noise. When entering and leaving transmit-disable mode, transients are kept to 7mV nominal at full gain. In addition, supply current is reduced to 25mA. Two power-down modes are available. Software-shutdown mode permits power-down of all analog circuitry while maintaining the programmed gain setting. Shutdown mode disables all circuitry and reduces current consumption to less than 10µA. The MAX3510 is available in a 20-pin QSOP package for the extended-industrial temperature range (-40¡ãC to +85¡ãC).

An evaluation kit is available:  MAX3510EVKIT

NOTE: This product requires use of the following:

MAX3510 PC-Control Software

Key Features		Applications/Uses
Ultra-Low Power-Up/Down Transients, 7mV Typical at 59dBmV Output Single +5V Supply Output Level Ranges from <8dBmV to 64dBmV Gain Programmable in 1dB Steps Low Transmit Output Noise Floor: -47dBmV (160kHz BW) Low Transmit-Disable Output Noise: -70dBmV Two Power-Down Modes		Cable Modems Cable Television Set-Top Boxes CATV Status Monitors Telephony-Over-Cable



Diagram

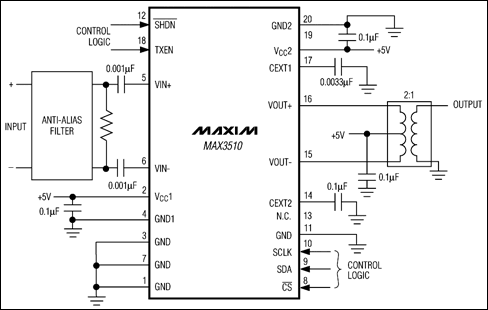

Typical Operating Circuit
