MAX1091, MAX1093 250ksps、+3V、8/4通道、10位ADC，带有+2.5V电压基准及并行接口

状态

状况：生产中。

概述

完整的数据资料 (PDF, 416kB)
英文下载

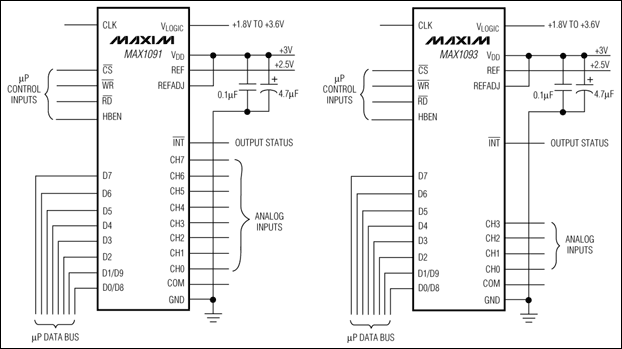

The MAX1091/MAX1093 low-power, 10-bit analog-to-digital converters (ADCs) feature a successive-approximation ADC, automatic power-down, fast wake-up (2µs), an on-chip clock, +2.5V internal reference, and a high-speed, byte-wide parallel interface. They operate with a single +3V analog supply and feature a V_LOGIC pin that allows them to interface directly with a +1.8V to +3.6V digital supply.

Power consumption is only 5.7mW (V_DD = V_LOGIC) at the maximum sampling rate of 250ksps. Two software-selectable power-down modes enable the MAX1091/MAX1093 to be shut down between conversions; accessing the parallel interface returns them to normal operation. Powering down between conversions can cut supply current to under 10µA at reduced sampling rates.

Both devices offer software-configurable analog inputs for unipolar/bipolar and single-ended/pseudo-differential operation. In single-ended mode, the MAX1091 has eight input channels and the MAX1093 has four input channels (four and two input channels, respectively, when in pseudo-differential mode).

Excellent dynamic performance and low power, combined with ease of use and small package size, make these converters ideal for battery-powered and data-acquisition applications or for other circuits with demanding power consumption and space requirements.

The MAX1091/MAX1093 tri-states active-low INT when active-low CS goes high. Refer to MAX1061/MAX1063 if tri-stating active-low INT is not desired.

The MAX1091 is available in a 28-pin QSOP package, while the MAX1093 is available in a 24-pin QSOP. For pin-compatible +5V, 10-bit versions, refer to the MAX1090/MAX1092 data sheet.

关键特性		应用/使用
10-Bit Resolution, ±0.5 LSB Linearity +3V Single-Supply Operation User-Adjustable Logic Level (+1.8V to +3.6V) Internal +2.5V Reference Software-Configurable, Analog Input Multiplexer 8-Channel Single-Ended/4-Channel Pseudo-Differential (MAX1091) 4-Channel Single-Ended/2-Channel Pseudo-Differential (MAX1093) Software-Configurable, Unipolar/Bipolar Inputs Low Power 1.9mA (250ksps) 1.0mA (100ksps) 400µA (10ksps) 2µA (Shutdown) Internal 3MHz Full-Power Bandwidth Track/Hold Byte-Wide Parallel (8 + 2) Interface Small Footprint: 28-Pin QSOP (MAX1091) 24-Pin QSOP (MAX1093)		数据采集系统数据记录能量管理工业控制系统病人监护触摸屏
