DS3992 Two-Channel, Push-Pull CCFL Controller

Provides Superior Lamp Current Balance Compared to Single-Channel Solutions

Status

Active: In Production.

Description

FULL DATA SHEET (PDF, 232kB)
Download

The DS3992 is a low-cost, two-channel controller for cold-cathode fluorescent lamps (CCFLs) that are used to backlight liquid crystal displays (LCDs). The DS3992 can drive multiple CCFLs per channel, making it ideal for 4- and 6-lamp LCD PC monitor and TV applications.

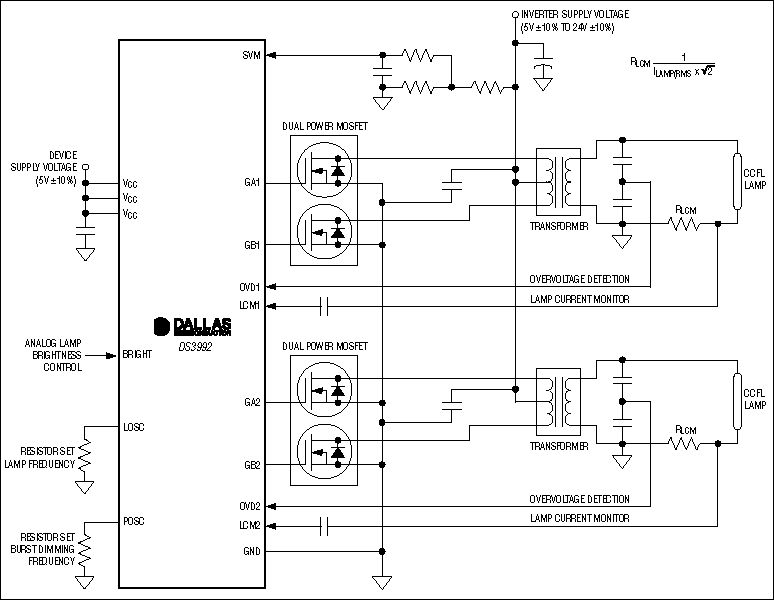

The DS3992 uses a push-pull drive scheme to convert a DC voltage (5V to 24V) to the high voltage (300V_RMS to 1400V_RMS) AC waveform that is required to power the CCFLs. The push-pull drive scheme uses a minimal number of external components, which reduces component and assembly cost and makes the printed circuit board (PC board) design easy to implement. The push-pull drive scheme also provides an efficient DC-to-AC conversion and produces near-sinusoidal waveforms.

Key Features		Applications/Uses
Two-Channel CCFL Controller for Backlighting LCD Panels for PC Monitors and LCD-TVs Minimal BOM Provides Low-Cost Inverter Solution Per-Channel Lamp Fault Monitoring for Lamp-Open, Lamp Overcurrent, Failure to Strike, and Overvoltage Conditions Accurate (��10%) On-Board Oscillator for Lamp Frequency (40kHz to 80kHz) Accurate (��10%) On-Board Oscillator for DPWM Burst-Dimming Frequency (90Hz to 220Hz or 180Hz to 440Hz) Device Supply Undervoltage Lockout Inverter Supply Undervoltage Lockout Burst-Dimming Soft-Start Minimizes Audible Transformer Noise Strike Frequency Boost 100% to < 10% Dimming Range 4.5V to 5.5V Single-Supply Operation -40��C to +85��C Temperature Range 16-Pin SO Package (150 mils)		LCD PC Monitors LCD-TVs
