DS3991 Low-Cost CCFL Controller

Full-Featured Single-Channel CCFL Controller

Status

Active: In Production.

Description

FULL DATA SHEET (PDF, 484kB)
Download

The DS3991 is a controller for cold-cathode fluorescent lamps (CCFLs) that are used to backlight liquid-crystal displays (LCDs). The DS3991 is available for both push-pull and half-bridge drive topologies.

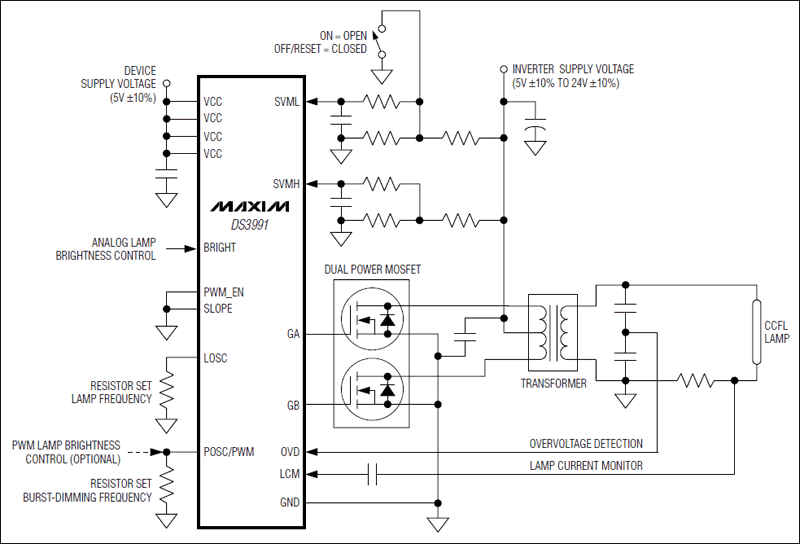

The DS3991 converts a DC voltage (5V to 24V) to the high-voltage (300V_RMS to 1400V_RMS) AC waveform that is required to power the CCFLs. The push-pull and halfbridge drive schemes use a minimal number of external components, which reduces component and assembly cost and makes the printed circuit board (PCB) design easy to implement. Both drive schemes provide an efficient DC to AC conversion and produce near-sinusoidal waveforms.

Key Features		Applications/Uses
CCFL Controller for Backlighting LCD Panels Minimal External Components Required Lamp Fault Monitoring for Lamp-Open, Lamp-Overcurrent, Failure-to-Strike, and Overvoltage Conditions Accurate (��5%) On-Board Oscillator for Lamp Frequency (40kHz to 80kHz) Accurate (��5%) On-Board Oscillator for DPWM Burst-Dimming Frequency (80Hz to 300Hz) Device Supply Undervoltage Lockout Inverter Supply Undervoltage and Overvoltage Lockouts Soft-Start on Burst-Dimming Minimizes Audible Transformer Noise Strike Frequency Boost 100% to < 10% Dimming Range Low Cost Single-Supply Operation Range: 4.5V to 5.5V Temperature Range: -40��C to +85��C 16-Pin SO Package (150 mils)		LCD Monitors LCD TVs
