| Description | ||||||
The MAX9650/MAX9651 are designed to source and sink a high current quickly to hold the VCOM voltage stable in large TFT-LCD panels. The MAX9650/MAX9651 feature 40V/µs slew rate and 35MHz bandwidth to quickly settle outputs for 120Hz frame rate and full HD television. The MAX9650/MAX9651 feature output short-circuit protection and thermal shutdown. These devices are available in exposed pad packages for excellent heat dissipation. | ||||||
Download
| Key Features | Applications/Uses | |
|
|
| Key Specifications: Operational Amplifiers | ||||||||||||||||||||||||||
| Part Number | Amps. | Rail to Rail | AVCL | VSUPPLY (Total) (V) |
VSUPPLY (Total) (V) |
ICC per Amp. (µA) |
ICC per Amp. (µA) |
VOS (µV) |
CMRR @DC (dB) |
PSRR @DC (dB) |
Input IBIAS (nA) |
Unity Gain BW (MHz) |
Slew Rate (V/µs) |
Low Pwr. Shutdn | Package/Pins | Price | ||||||||||
| min | min | max | typ | max | max | typ | typ | max | typ | typ | See Notes | |||||||||||||||
| MAX9651 | 2 | Input/Output | 1 | 6 | 20 | 3700 | 8000 | 14000 | 80 | 90 | 1000 | 35 | 40 | No |
|
$0.71 @1k | ||||||||||
| MAX9650 | 1 | 95 |
|
$0.54 @1k | ||||||||||||||||||||||
| See All Operational Amplifiers (146) | ||||||||||||||||||||||||||
| Key Specifications: VCOM Amplifiers and Panel Repair | ||||||||||||||
| Part Number | Channels | Peak Current (mA) |
Rail to Rail | BW (MHz) |
Slew Rate (V/µs) |
Features | Programmable | VSUPPLY (V) |
Oper. Temp. (°C) |
Package/Pins | Smallest Available Pckg. (mm2) |
Price | ||
| max w/pins | See Notes | |||||||||||||
| MAX9651 | 2 | 1300 | Input/Output | 30 | 40 | Thermal Shutdown | No | 6 to 20 | -40 to +125 |
|
9.6 | $0.71 @1k | ||
| MAX9650 | 1 |
|
$0.54 @1k | |||||||||||
| See All VCOM Amplifiers and Panel Repair (7) | ||||||||||||||
| Diagram |

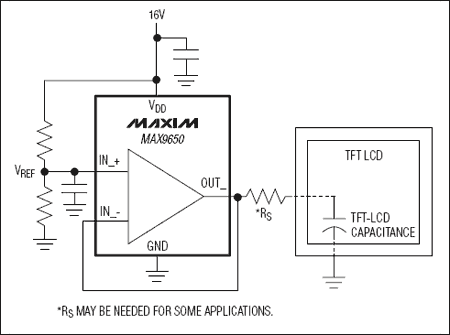

 Typical Operating Circuit |
