| Status |
| Active: In Production. |
| Description | ||||||
The MAX9550/MAX9551/MAX9552 feature single, dual, and quad channel VCOM amplifiers, respectively. The MAX9550/MAX9551/MAX9552 can drive up to 800mA of peak current per channel and operate up to 20V. The devices feature soft-start to reduce inrush current, output short-circuit protection, and thermal shutdown. The MAX9550 is available in a space-saving 5-pin thin SOT23 package, and an 8-pin µMAX® package with an exposed paddle. The MAX9551 is available in an 8-pin µMAX package with an exposed paddle. The MAX9552 is available in a 14-pin TSSOP package. All devices are specified over the -40°C to +85°C temperature range. | ||||||
DownloadAn evaluation kit is available: MAX9552EVKIT
| Key Features | Applications/Uses | |
|
|
| Key Specifications: Operational Amplifiers | ||||||||||||||||||||||||||
| Part Number | Amps. | Rail to Rail | AVCL | VSUPPLY (Total) (V) |
VSUPPLY (Total) (V) |
ICC per Amp. (µA) |
ICC per Amp. (µA) |
VOS (µV) |
CMRR @DC (dB) |
PSRR @DC (dB) |
Input IBIAS (nA) |
Low Pwr. Shutdn | Package/Pins | Price | ||||||||||||
| min | min | max | typ | max | max | typ | typ | max | See Notes | |||||||||||||||||
| MAX9550 | 1 | Output Only | 1 | 7 | 20 | 2000 | 4000 | 10000 | 96 | 96 | 1000 | No |
|
$0.48 @1k | ||||||||||||
| MAX9551 | 2 |
|
$0.39 @1k | |||||||||||||||||||||||
| MAX9552 | 4 |
|
$0.65 @1k | |||||||||||||||||||||||
| See All Operational Amplifiers (146) | ||||||||||||||||||||||||||
| Key Specifications: VCOM Amplifiers and Panel Repair | ||||||||||||||
| Part Number | Channels | Peak Current (mA) |
Rail to Rail | Features | Programmable | VSUPPLY (V) |
Oper. Temp. (°C) |
Package/Pins | Smallest Available Pckg. (mm2) |
Price | ||||
| max w/pins | See Notes | |||||||||||||
| MAX9550 | 1 | 800 | Output Only | Thermal Shutdown | No | 7 to 20 | -40 to +85 |
|
8.3 | $0.48 @1k | ||||
| MAX9551 | 2 |
|
15.3 | $0.39 @1k | ||||||||||
| MAX9552 | 4 |
|
33.2 | $0.65 @1k | ||||||||||
| See All VCOM Amplifiers and Panel Repair (7) | ||||||||||||||
| Key Specifications: Video/Wideband Amplifiers | |||||||||||||||||||||||||
| Part Number | Amps. | Single Supply | ISUPPLY (mA) |
IOUT (mA) |
VSUPPLY (V) |
VSUPPLY (V) |
Oper. Temp. (°C) |
Package/Pins | Price | ||||||||||||||||
| typ | min | min | max | See Notes | |||||||||||||||||||||
| MAX9550 | 1 | Yes | 2 | 55 | 7 | 20 | -40 to +85 |
|
$0.48 @1k | ||||||||||||||||
| MAX9551 | 2 |
|
$0.39 @1k | ||||||||||||||||||||||
| MAX9552 | 4 |
|
$0.65 @1k | ||||||||||||||||||||||
| See All Video/Wideband Amplifiers (91) | |||||||||||||||||||||||||
| Diagram |

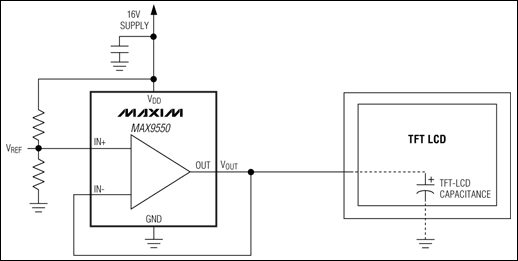

 Typical Operating Circuit |
