MAX7326

Description

FULL DATA SHEET (PDF, 364kB) Download   The MAX7326, a 2-wire serial-interfaced peripheral, features 12 push-pull outputs and four input ports with selectable internal pullups and transition detection. Ports are overvoltage protected to +6V, independent of supply voltage. The inputs are continuously monitored for state changes (transition detection). State changes are indicated by the open-drain, +6V-tolerant active-low INT output. The interrupt is latched, detecting transient changes. When the MAX7326 is subsequently accessed through the serial interface, any pending interrupt is cleared. The 12 push-pull outputs are rated to sink 20mA and are capable of driving LEDs. The active-low RST input clears the serial interface, terminating any I²C communication to or from the MAX7326. The MAX7326 uses two address inputs with four-level logic to allow 16 I²C slave addresses. The slave address also enables or disables internal 40k¦¸ pullups in groups of two ports. The MAX7326 is one device in a family of pin-compatible port expanders with a choice of input ports, open-drain I/O ports, and push-pull output ports. The MAX7326 is available in 24-pin QSOP and TQFN packages, and it is specified over the -40¡ãC to +125¡ãC automotive temperature range.

An evaluation kit is available:  MAX7326EVCMAXQU, MAX7326EVKIT

Diagram

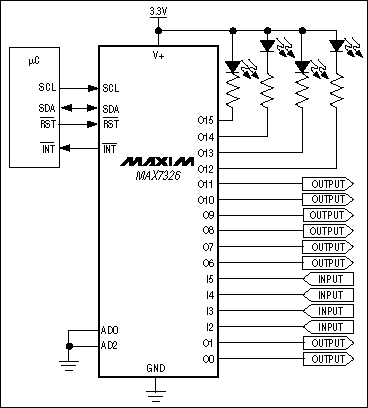

Typical Application Circuit
