HGTG20N60A4 Fairchild代理600V SMPS Series N-Channel IGBTs HGTG20N60A4全新现货 深圳市亨力拓电子有限公司货源电话：0755-83293082 阮先生
HGTG20N60A4 Fairchild代理600V SMPS Series N-Channel IGBTs 大批量到货

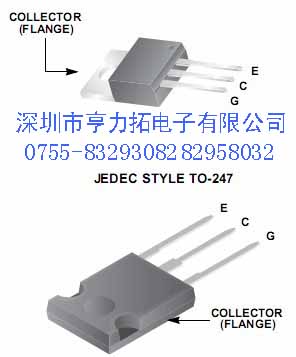

HGTG20N60A4 Fairchild代理600V SMPS Series N-Channel IGBTs
600V, SMPS Series N-Channel IGBTs
The HGTG20N60A4 and HGTP20N60A4 are MOS gated
high voltage switching devices combining the best features
of MOSFETs and bipolar transistors. These devices have the
high input impedance of a MOSFET and the low on-state
conduction loss of a bipolar transistor. The much lower
on-state voltage drop varies only moderately between 25oC
and 150oC.
This IGBT is ideal for many high voltage switching
applications operating at high frequencies where low
conduction losses are essential. This device has been
optimized for high frequency switch mode power
supplies.
Formerly Developmental Type TA49339.
Features
• >100kHz Operation at 390V, 20A
• 200kHz Operation at 390V, 12A
• 600V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . . 55ns at TJ = 125oC
• Low Conduction Loss
• Temperature Compensating SABER™ Model
• Related Literature
- TB334 “Guidelines for Soldering Surface Mount
Components to PC Boards
