HGTG12N60A4 Fairchild代理600V SMPS Series N-Channel IGBT HGTG12N60A4全新现货 深圳市亨力拓电子有限公司货源电话：0755-83293082 阮先生
HGTG12N60A4 Fairchild代理600V SMPS Series N-Channel IGBT 大批量到货
HGTG12N60A4 Fairchild代理600V SMPS Series N-Channel IGBT
600V, SMPS Series N-Channel IGBTs

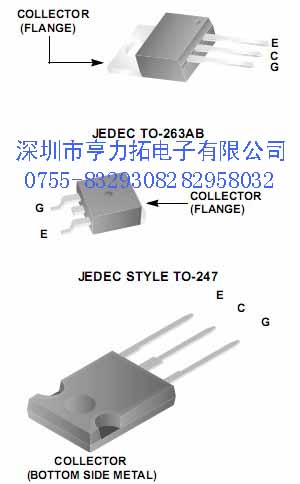

The HGTP12N60A4, HGTG12N60A4 and
HGT1S12N60A4S9A are MOS gated high voltage switching
devices combining the best features of MOSFETs and
bipolar transistors. These devices have the high input
impedance of a MOSFET and the low on-state conduction
loss of a bipolar transistor. The much lower on-state voltage
drop varies only moderately between 25oC and 150oC.
This IGBT is ideal for many high voltage switching
applications operating at high frequencies where low
conduction losses are essential. This device has been
optimized for high frequency switch mode power supplies.
Formerly Developmental Type TA49335.
Features
• >100kHz Operation at 390V, 12A
• 200kHz Operation at 390V, 9A
• 600V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . . 70ns at TJ = 125oC
• Low Conduction Loss
• Related Literature
- TB334 “Guidelines for Soldering Surface Mount
Components to PC Boards
