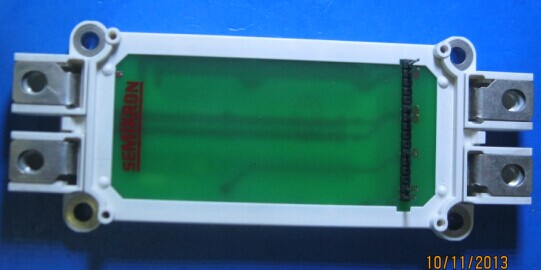

SEMIKRON Semix系列SEMiX202GB066HDs
| 产品型号 | Ic(A) | Vce(sat) | ton | toff | Rth(j-c) | Pc(W) | 封装 | 技术文档 |
| Tc=25℃ | Type(V) | (us) | (us) | K/W | ||||
| 600V-IGBT3(Trench) | ||||||||
| SEMiX202GB066HDs | 274 | 1,45 | 0.065 | 0.545 | 0.21 | - | SEMiX2s |  pdf |
| SEMiX302GB066HDs | 380 | 1,45 | - | - | 0.16 | - | SEMiX2s | pdf |
| SEMiX402GB066HDs | 505 | 1,45 | 0.15 | 0.9 | 0.12 | - | SEMiX2s | pdf |
| SEMiX603GB066HDs | 720 | 1,45 | 0.15 | 1.05 | 0.087 | - | SEMiX3s | pdf |
| SEMiX101GD066HDs | 140 | 1,45 | 0.14 | 0.44 | 0.41 | - | SEMiX13 | pdf |
| SEMiX151GD066HDs | 200 | 1,45 | 0.14 | 0.385 | 0.29 | - | SEMiX13 | pdf |
| SEMiX201GD066HDs | 260 | 1,45 | 0.18 | 0.5 | 0.23 | - | SEMiX13 | pdf |
| 1200V-IGBT3(Trench) | ||||||||
| SEMiX252GB126HDs | 240 | 1.7 | 0.3 | 0.57 | 0.15 | - | SEMiX2s | pdf |
| SEMiX302GB126HDs | 310 | 1.7 | - | - | 0.12 | - | SEMiX2s | pdf |
| SEMiX353GB126HDs | 365 | 1.7 | 0.565 | 0.585 | 0.1 | - | SEMiX3s | pdf |
| SEMiX452GB126HDs | 455 | 1.7 | 0.285 | 0.635 | 0.083 | - | SEMiX2s | pdf |
| SEMiX503GB126HDs | 465 | 1.7 | 0.275 | 0.625 | 0.08 | - | SEMiX3s | pdf |
| SEMiX604GB126HDs | 595 | 1.7 | - | - | 0.065 | - | SEMiX4s | pdf |
| SEMiX703GB126HDs | 650 | 1.7 | 0.31 | 0.68 | 0.061 | - | SEMiX3s | pdf |
| SEMiX904GB126HDs | 820 | 1.7 | 0.441 | 0.706 | 0.05 | - | SEMiX4s | pdf |
| SEMiX101GD126HDs | 130 | 1.7 | 0.225 | 0.47 | 0.27 | - | SEMiX13 | pdf |
| SEMiX151GD126HDs | 170 | 1.7 | - | - | 0.21 | - | SEMiX13 | pdf |
| SEMiX251GD126HDs | 240 | 1.7 | - | - | 0.15 | - | SEMiX13 | pdf |
| SEMiX353GD126HDc | 365 | 1.7 | 0.565 | 0.585 | 0.1 | - | SEMiX33c | pdf |
| SEMiX503GD126HDc | 465 | 1.7 | 0.275 | 0.625 | 0.08 | - | SEMiX33c | pdf |
| SEMiX703GD126HDc | 650 | 1.7 | 0.31 | 0.68 | 0.061 | - | SEMiX33c | pdf |
| 1200V-SPT | ||||||||
| SEMiX101GD128Ds | 100 | 1.9 | - | - | 0.28 | - | SEMiX13 | pdf |
| SEMiX151GD128Ds | 150 | 1.9 | - | - | 0.19 | - | SEMiX13 | pdf |
| SEMiX201GD128Ds | 200 | 1.9 | - | - | 0.15 | - | SEMiX13 | pdf |
| SEMiX403GD128Dc | 420 | 1.9 | 0.145 | 0.535 | 0.083 | - | SEMiX33c | pdf |
| SEMiX553GD128Dc | 535 | 1.9 | 0.185 | 0.635 | 0.061 | - | SEMiX33c | pdf |
| 1200V-IGBT4(Trench) | ||||||||
| SEMiX151GB12E4s | 230 | 1.8 | 0.204 | 0.468 | 0.19 | - | SEMiX1 | pdf |
| SEMiX202GB12E4s | 310 | 1.8 | 0.253 | 0.533 | 0.14 | - | SEMiX2S | pdf |
| SEMiX302GB12E4s | 460 | 1.8 | 0.282 | 0.564 | 0.096 | - | SEMiX2s | pdf |
| SEMiX303GB12E4s | 465 | 1.8 | 0.255 | 0.565 | 0.096 | - | SEMiX3s | pdf |
| SEMiX404GB12E4s | 615 | 1.8 | 0.296 | 0.634 | 0.065 | - | SEMiX3s | pdf |
| SEMiX453GB12E4s | 685 | 1.8 | 0.336 | 0.635 | 0.065 | - | SEMiX3S | pdf |
| SEMiX604GB12E4s | 910 | 1.8 | 0.374 | 1.277 | 0.049 | - | SEMiX4s | pdf |
| SEMiX71GD12E4s | 115 | 1.85 | 0.16 | 0.433 | 0.38 | - | SEMiX13 | pdf |
| SEMiX101GD12E4s | 160 | 1.8 | 0.187 | 0.467 | 0.27 | - | SEMiX13 | pdf |
| SEMiX151GD12E4s | 230 | 1.8 | 0.204 | 0.468 | 0.19 | - | SEMiX13 | PDF |
| SEMiX303GD12E4c | 465 | 1.8 | 0.255 | 0.565 | 0.095 | - | SEMiX33c | pdf |
| SEMiX453GD12E4c | 685 | 1.8 | 0.336 | 0.635 | 0.065 | - | SEMiX33c | pdf |
| 1700V-IGBT3(Trench) | ||||||||
| SEMiX252GB176HDs | 245 | 2 | 0.265 | 0.875 | 0.12 | - | SEMiX2s | pdf |
| SEMiX302GB176HDs | 305 | 2 | 0.225 | 0.665 | 0.1 | - | SEMiX2s | pdf |
| SEMiX353GB176HDs | 350 | 2 | 0.25 | 0.93 | 0.086 | - | SEMiX3s | pdf |
| SEMiX452GB176HDs | 435 | 2 | 0.34 | 0.9 | 0.073 | - | SEMiX2s | pdf |
| SEMiX453GB176HDs | 445 | 2 | 0.335 | 0.99 | 0.071 | - | SEMiX3s | pdf |
| SEMiX604GB176HDs | 565 | 2 | 0.36 | 0.9 | 0.058 | - | SEMiX4s | pdf |
| SEMiX653GB176HDs | 620 | 2 | 0.29 | 0.975 | 0.054 | - | SEMiX3s | pdf |
| SEMiX854GB176HDs | 775 | 2 | 0.34 | 0.89 | 0.045 | - | SEMiX4s | pdf |
| SEMiX353GD176HDc | 350 | 2 | 0.25 | 0.93 | 0.086 | - | SEMiX33c | pdf |
| SEMiX453GD176HDc | 445 | 2 | 0.335 | 0.99 | 0.071 | - | SEMiX33c | pdf |
| SEMiX653GD176HDc | 620 | 2 | 0.29 | 0.975 | 0.054 | - | SEMiX33c | pdf |
