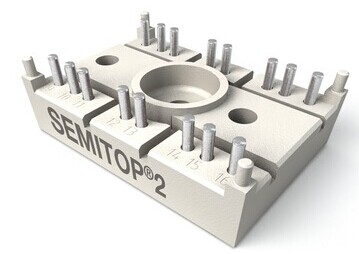

SEMIKRON SemiTopϵÁÐSK25GB063
| ²úÆ·ÐͺŠ| Ic(A) | Vce(sat) | ton | toff | Rth(j-c) | Pc(W) | ·â×° | µç·½á¹¹ |
| Tc=80¡æ | Type(V) | (us) | (us) | K/W | ||||
| 600V-NPTIGBT(Standard) | ||||||||
| SK25GB063 | 30 | 2.1 | 0.04 | 0.2 | 1 | - | Semitop2 | |
| SK45GB063 | 45 | 2.1 | 0.045 | 0.25 | 0.6 | - | Semitop2 |  pdf |
| SK80GB063 | 81 | 2 | 0.045 | 0.3 | 1.4 | - | Semitop1 | pdf |
| SK80GM063 | 81 | 2 | 0.045 | 0.3 | 1.4 | - | Semitop2 | pdf |
| SK15GH063 | 20 | 2.1 | 0.035 | 0.25 | 1 | - | Semitop2 | pdf |
| SK25GH063 | 30 | 2.1 | 0.04 | 0.2 | 0.6 | - | Semitop2 | pdf |
| SK45GH063 | 45 | 2 | 0.045 | 0.25 | 1.4 | - | Semitop1 | pdf |
| SK13GD063 | 18 | 2.1 | 0.045 | 0.3 | 1.4 | - | Semitop2 | pdf |
| SK25GD063 | 30 | 2.1 | 0.04 | 0.2 | 1 | - | Semitop3 | pdf |
| SK25GAD063T | 30 | 2.1 | 0.04 | 0.2 | 1 | - | Semitop2 | pdf |
| SK45GD063 | 45 | 2.1 | 0.045 | 0.25 | 0.6 | - | Semitop3 | pdf |
| 600V-NPTIGBT(Ultrafast) | ||||||||
| SK25GB065 | 30 | 1.8 | 0.03 | 0.25 | 1.4 | - | Semitop1 | pdf |
| SK50GB065 | 54 | 2 | 0.06 | 0.22 | 0.85 | - | Semitop2 | pdf |
| SK20GH065 | 24 | 2 | 0.021 | 0.17 | 1.7 | - | Semitop2 | pdf |
| SK50GH065F | 54 | 2 | - | 0.85 | - | Semitop3 | pdf | |
| SK9GD065 | 11 | 2 | 0.02 | 0.145 | 2.6 | - | Semitop2 | pdf |
| SK10GD065ET | 17 | 2 | 0.045 | 0.34 | 2 | - | Semitop3 | pdf |
| SK15GD065ET | 20 | 2 | 0.045 | 0.34 | 1.9 | - | Semitop3 | pdf |
| SK20GD065 | 24 | 2 | 0.036 | 0.25 | 1.7 | - | Semitop2 | pdf |
| SK20GD065ET | 26 | 2 | - | - | 1.7 | - | Semitop3 | pdf |
| SK25GD065ET | 30 | 2 | 0.03 | 0.25 | 1.4 | - | Semitop3 | pdf |
| SK35GD065ET | 45 | 2 | 0.035 | 0.24 | 1 | - | Semitop3 | pdf |
| SK25MLI065 | 30 | 1.8 | 0.03 | 0.25 | 1,4 | - | Semitop3 | pdf |
| SK50MLI065 | 54 | 1.8 | 0.06 | 0.223 | 0,85 | - | Semitop3 | pdf |
| 600V-IGBT3(Trench) | ||||||||
| SK50GD066ET | 60 | 1.45 | 0.028 | 0.301 | 1.3 | - | Semitop3 | pdf |
| SK75GD066T | 83 | 1.45 | 0.095 | 0.541 | 0.75 | - | Semitop4 | pdf |
| SK100GD066T | 105 | 1.45 | 0.144 | 1.04 | 0.65 | - | Semitop4 | pdf |
| SK150GD066T | 151 | 1.45 | 0.095 | 0.541 | 0.55 | - | Semitop4 | pdf |
| SK200GD066T | 174 | 1.45 | 0.144 | 1.04 | 0.45 | - | Semitop4 | pdf |
| SK30GAD066T | 38 | 1,45 | - | - | 1,8 | - | Semitop3 | pdf |
| SK20MLI066 | 30 | 1.45 | 0.021 | 0.23 | 2.1 | - | Semitop3 | pdf |
| SK30MLI066 | 40 | 1.45 | 0.024 | 0.328 | 1.8 | - | Semitop3 | pdf |
| SK50MLI066 | 60 | 1.45 | 0.03 | 0.351 | 1.3 | - | Semitop3 | pdf |
| SK75MLI066T | 83 | 1.45 | 0.097 | 0.339 | 0.75 | - | Semitop4 | pdf |
| SK100MLI066T | 105 | 1.45 | 0.136 | 0.457 | 0.65 | - | Semitop4 | pdf |
| SK150MLI066T | 151 | 1.45 | 0.1 | 0.45 | 0.55 | - | Semitop4 | pdf |
| 600V-NPTIGBT(Hyperfast) | ||||||||
| SK30GB067 | 45 | 2.8 | 0.04 | 0.265 | 0.85 | - | Semitop2 | pdf |
| SK40GB067 | 62 | 2.8 | 0.04 | 0.262 | 0.6 | - | Semitop3 | pdf |
| SK50GB067 | 83 | 2.8 | 0.038 | 0.26 | 0.45 | - | Semitop3 | pdf |
| SK30GH067 | 45 | 2.8 | - | - | 0.85 | - | Semitop3 | pdf |
| 1200V-NPTIGBT(Standard) | ||||||||
| SK20GB123 | 23 | 2.5 | 0.035 | 0.25 | 1.4 | - | Semitop2 | pdf |
| SK30GB123 | 33 | 2.5 | 0.04 | 0.3 | 1 | - | Semitop2 | pdf |
| SK40GB123 | 40 | 2.5 | 0.035 | 0.25 | 0.85 | - | Semitop2 | pdf |
| SK60GB125 | 51 | 3.2 | 0.08 | 0.539 | 0.6 | - | Semitop3 | pdf |
| SK60GB123 | 58 | 2.5 | 0.04 | 0.38 | 0.6 | - | Semitop3 | pdf |
| SK60GM123 | 60 | 2.5 | 0.04 | 0.3 | 0.6 | - | Semitop2 | pdf |
| SK10GH123 | 16 | 2.7 | 0.03 | 0.2 | 1.8 | - | Semitop2 | pdf |
| SK20GH123 | 23 | 2.5 | 0.035 | 0.25 | 1.4 | - | Semitop2 | pdf |
| SK30GH123 | 33 | 2.5 | 0.065 | 0.43 | 1 | - | Semitop3 | pdf |
| SK10GD123 | 15 | 2.7 | 1.8 | - | Semitop3 | pdf | ||
| SK20GD123 | 23 | 2.5 | 0.035 | 0.25 | 1.4 | - | Semitop3 | pdf |
| SK30GD123 | 33 | 2.5 | 0.065 | 0.43 | 1 | - | Semitop3 | pdf |
| 1200V-IGBT3(Trench) | ||||||||
| SK8GD126 | 15 | 1.7 | 0.085 | 0.43 | 2 | - | Semitop2 | pdf |
| SK10GD126ET | 15 | 1.7 | 0.085 | 0.43 | 2 | - | Semitop3 | pdf |
| SK15GD126 | 22 | 1.7 | 0.035 | 0.403 | 1.6 | - | Semitop2 | pdf |
| SK15GD126ET | 22 | 1.7 | 0.085 | 0.43 | 1.6 | - | Semitop3 | pdf |
| SK25GD126ET | 32 | 1.7 | 0.085 | 0.43 | 1.2 | - | Semitop3 | pdf |
| SK35GD126ET | 40 | 1.7 | 0.085 | 0.43 | 1.05 | - | Semitop3 | pdf |
| SK50GD126T | 68 | 1.7 | 0.115 | 0.509 | 0.6 | - | Semitop4 | pdf |
| SK75GD126T | 88 | 1.7 | 0.062 | 0.514 | 0.5 | - | Semitop4 | pdf |
| SK100GD126T | 114 | 1.7 | 0.062 | 0.514 | 0.4 | - | Semitop4 | pdf |
| 1200V-SPT | ||||||||
| SK30GB128 | 35 | 2 | 0.055 | 0.284 | 1 | - | Semitop2 | pdf |
| SK60GB128 | 63 | 1.9 | 0.08 | 0.42 | 0.6 | - | Semitop3 | pdf |
| SK50GH128T | 70 | 1.9 | - | - | 0.6 | - | Semitop4 | pdf |
| SK100GH128T | 120 | 1.9 | 0.08 | 0.418 | 0.41 | - | Semitop4 | pdf |
| SK30GD128 | 35 | 2 | 0.055 | 0.284 | 1 | - | Semitop3 |  PDF |
